Dual-Use PORTAGANTRY RAPIDE



Our unique and innovative PORTAGANTRY RAPIDE is a height adjustable, foldable, portable aluminium gantry designed for rapid deployment. Capable of an impressive load lifting capacity of up to 1000kg.

This system can be assembled and disassembled by just one person within a minute without the need for any tools and is the perfect solution for Confined Space Access, Rescue & Entry Lifting scenarios due to its unique features and ability to lift equipment and personnel.





“The perfect dual-use solution for goods lifting, working at height to confined space access tasks”



Key features

  • Complies with AS/NZ 5532:2013 Manufacturing Standards for Single Point Anchor Devices. Designed for Limited Free Fall Arrest Anchoring

  • Meets the requirements of AS/NZS 1891.4:2009 Industrial Fall Arrest Systems & Devices

  • ATEX Certified

  • Can support goods and personnel lifting; Goods WLL of up to 1000kg and Personnel WLL of up to 500kg

  • Suitable for up to 3 persons for fall protection applications

  • Integrated wheel design that folds with the frame for ease of transportation

  • Available in 3 height-adjustable versions [up to 2.9m to the lifting eye] and can accommodate a range of beam lengths up to 4m

  • Anodised for increased corrosion resistance

  • Engineered designs and bespoke sections reduce weight, providing lightweight portability



Configurations

The PORTAGANTRY RAPIDE is available in a range of configurations and can be customised in line with specific requirements (subject to WLL rating). This product is patented.




See our PORTAGANTRY RAPIDE in action




Choose your system



PORTAGANTRY RAPIDE 250-500kg

  • Complies with AS/NZ 5532:2013 Manufacturing Standards for Single Point Anchor Devices. Designed for Limited Free Fall Arrest Anchoring

  • Meets the requirements of AS/NZS 1891.4:2009 Industrial Fall Arrest Systems & Devices

  • EN795:2012 certified and meets the requirements of IRATA ICOP

  • ATEX certified [Zone 2 standard, Zone 1 as an option]

  • Fall arrest capacity – up to 3 users

  • Personnel capacity up to 250kg and goods capacity up to 500kg

  • Gated trolley options and sheave carriers for attaching fall arrest devices

  • A range of winch brackets available for the trap plate or upright

  • Winch ready accessories for lowering and rescue

  • Easy height adjustment




PORTAGANTRY RAPIDE 1000kg

  • Complies with AS/NZ 5532:2013 Manufacturing Standards for Single Point Anchor Devices. Designed for Limited Free Fall Arrest Anchoring

  • Meets the requirements of AS/NZS 1891.4:2009 Industrial Fall Arrest Systems & Devices

  • ATEX certified [Zone 2 standard, Zone 1 as an option]

  • Fall arrest capacity – up to 3 users

  • Personnel capacity up to 500kg and goods capacity up to 1000kg

  • Gated trolley options and sheave carriers for attaching fall arrest devices

  • A range of winch brackets available for the trap plate or upright

  • Winch ready accessories for lowering and rescue

  • Easy height adjustment

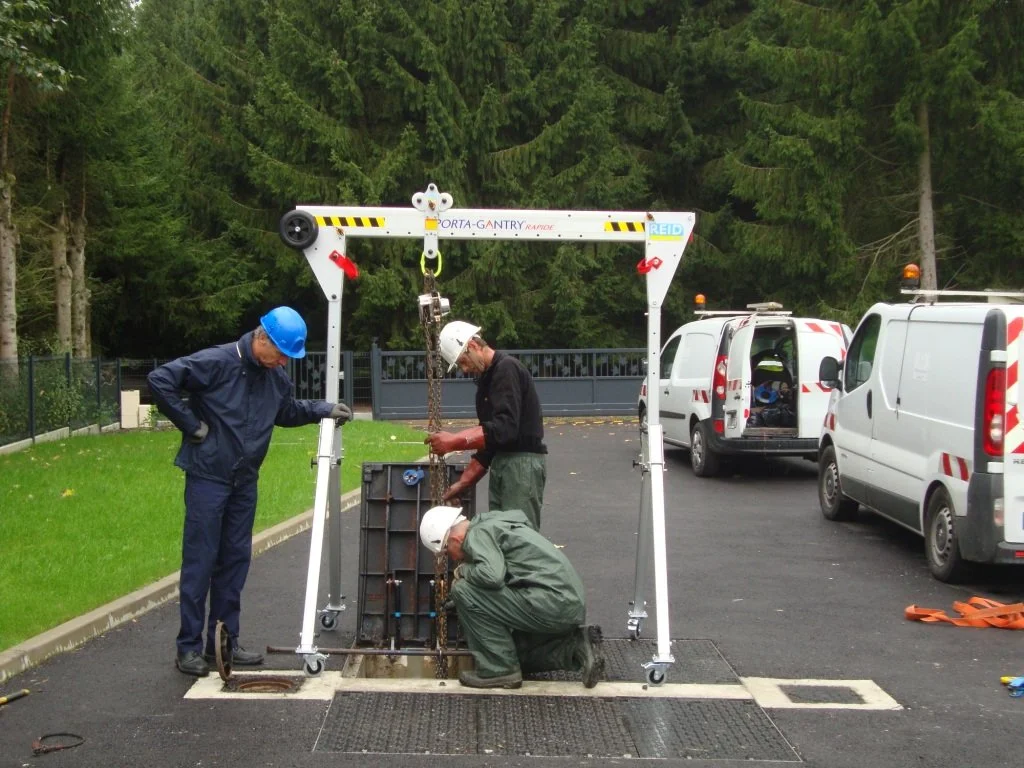

Our portable lifting systems in action

For more information on what our aluminium lifting solutions can do, check out our list of case studies.
