Strong & Durable PORTAGANTRY
Our top quality and highly durable PORTAGANTRY is lightweight and extremely strong. This portable lifting system can be manually assembled, using just four bolts and can safely lift to 5000kg, making it ideal for multiple applications.
This system offers an overhead anchor point for multiple users for fall protection, whilst also providing great versatility for lifting materials. Our PORTAGANTRY range is highly customisable to meet your specific needs, with a variety of A-frame height configurations and beam lengths available.
“High quality portable gantry ideal for the heavy lifting of materials up to 5000kg”
Key features
Complies with AS/NZ 5532:2013 Manufacturing Standards for Single Point Anchor Devices. Designed for Limited Free Fall Arrest Anchoring
Meets the requirements of AS/NZS 1891.4:2009 Industrial Fall Arrest Systems & Devices
ATEX Certified
Can support goods and personnel lifting; Goods WLL of up to 5000kg and Personnel WLL of up to 2500kg
Suitable for up to 5 persons for fall protection applications
Beams and A-frames can be interchanged
Ergonomic 360° swivel-locking castors, as standard
Ease of assembly including height and span adjustment
Anodised for increased corrosion resistance
Engineered designs and bespoke sections reduce weight, providing lightweight portability
Configurations
The PORTAGANTRY is available in a range of configurations and can be customised in line with specific requirements (subject to WLL rating).
The PORTAGANTRY has the ability to be moved under load. (Subject to detailed instruction and supervision by a competent person). This product is patented.
Trolley Options
Our PORTAGANTRY can support a range of trolley options such as a Gated Trolley, Gear Driven Trolley and Master Link Trolley all designed to support your lifting requirements.
See our PORTAGANTRY in action
Choose your A-frame size
PORTAGANTRY 500-1000kg
Complies with AS/NZ 5532:2013 Manufacturing Standards for Single Point Anchor Devices. Designed for Limited Free Fall Arrest Anchoring for 1 or 2 users dependent upon beam length.
Meets the requirements of AS/NZS 1891.4:2009 Industrial Fall Arrest Systems & Devices
Meets the requirements of IRATA ICOP
Tested to PD CEN TS16415:2013 for multiple users
ATEX certified [Zone 2 standard, Zone 1 as an option]
Fall arrest capacity – up to 3 users
Personnel capacity up to 500kg and goods capacity up to 1000kg
Easily customisable with our full range of accessories
PORTAGANTRY 2000-3000kg
Complies with AS/NZ 5532:2013 Manufacturing Standards for Single Point Anchor Devices. Designed for Limited Free Fall Arrest Anchoring for 2 users.
Meets the requirements of AS/NZS 1891.4:2009 Industrial Fall Arrest Systems & Devices
Meets the requirements of IRATA ICOP
Tested to PD CEN TS16415:2013 for multiple users
ATEX certified [Zone 2 standard, Zone 1 as an option]
Fall arrest capacity – up to 5 users
Personnel capacity up to 1500kg and goods capacity up to 3000kg
Easily customisable with our full range of accessories
PORTAGANTRY 5000kg
Complies with AS/NZ 5532:2013 Manufacturing Standards for Single Point Anchor Devices. Designed for Limited Free Fall Arrest Anchoring for 2 users.
Meets the requirements of AS/NZS 1891.4:2009 Industrial Fall Arrest Systems & Devices
Meets the requirements of IRATA ICOP
Tested to PD CEN TS16415:2013 for multiple users
ATEX certified [Zone 2 standard]
Fall arrest capacity – up to 5 users
Personnel capacity up to 2500kg and goods capacity up to 5000kg
Easily customisable with our range of accessories
Choose your beam length
Beams come with integrated carry handles for ease of transportation
Multiple holes along the beam provide easy adjustment of beam length on the A-frame
A variety of beam lengths can be interchanged
Can support a wide range of trolley options

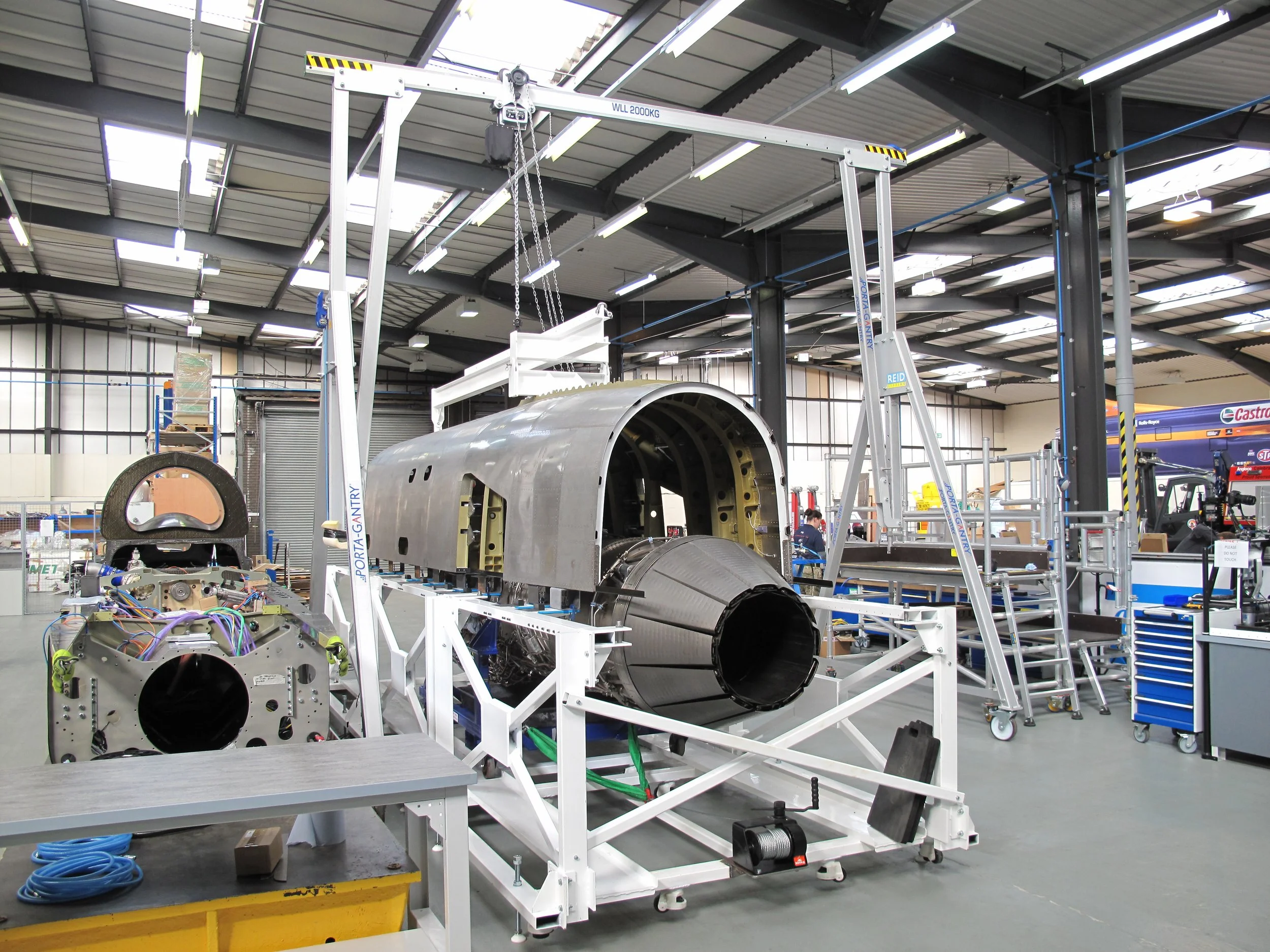

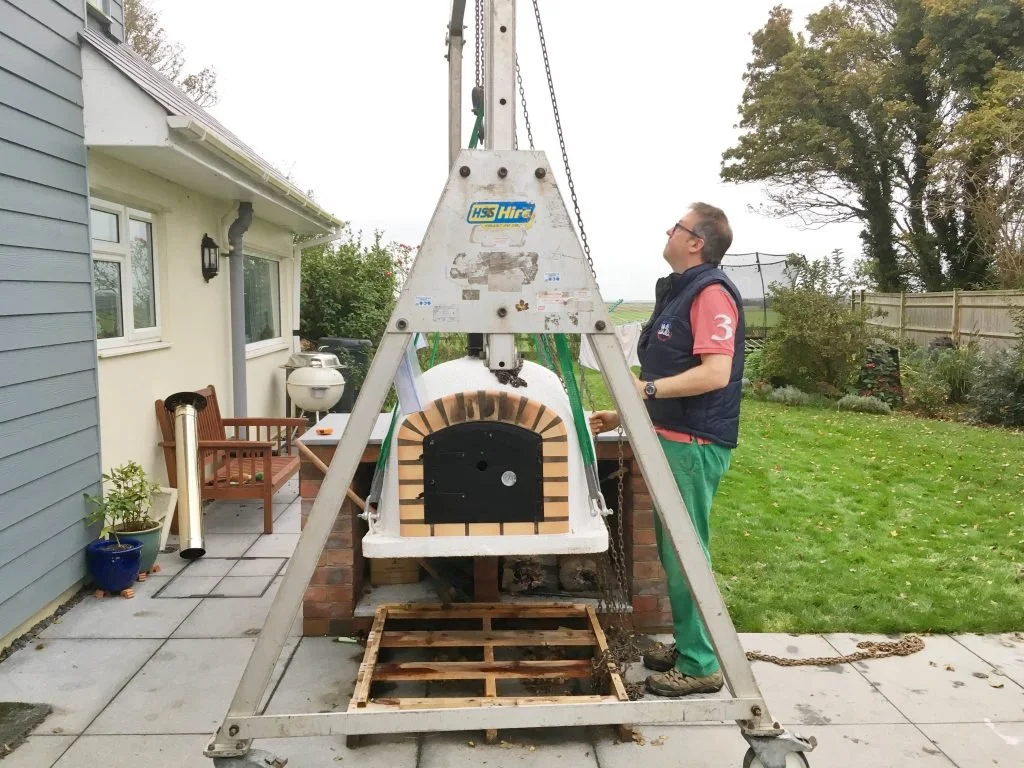

Portable Aluminium Gantry in action
For more information on what our portable lifting systems can do, take a look at our case studies here.
